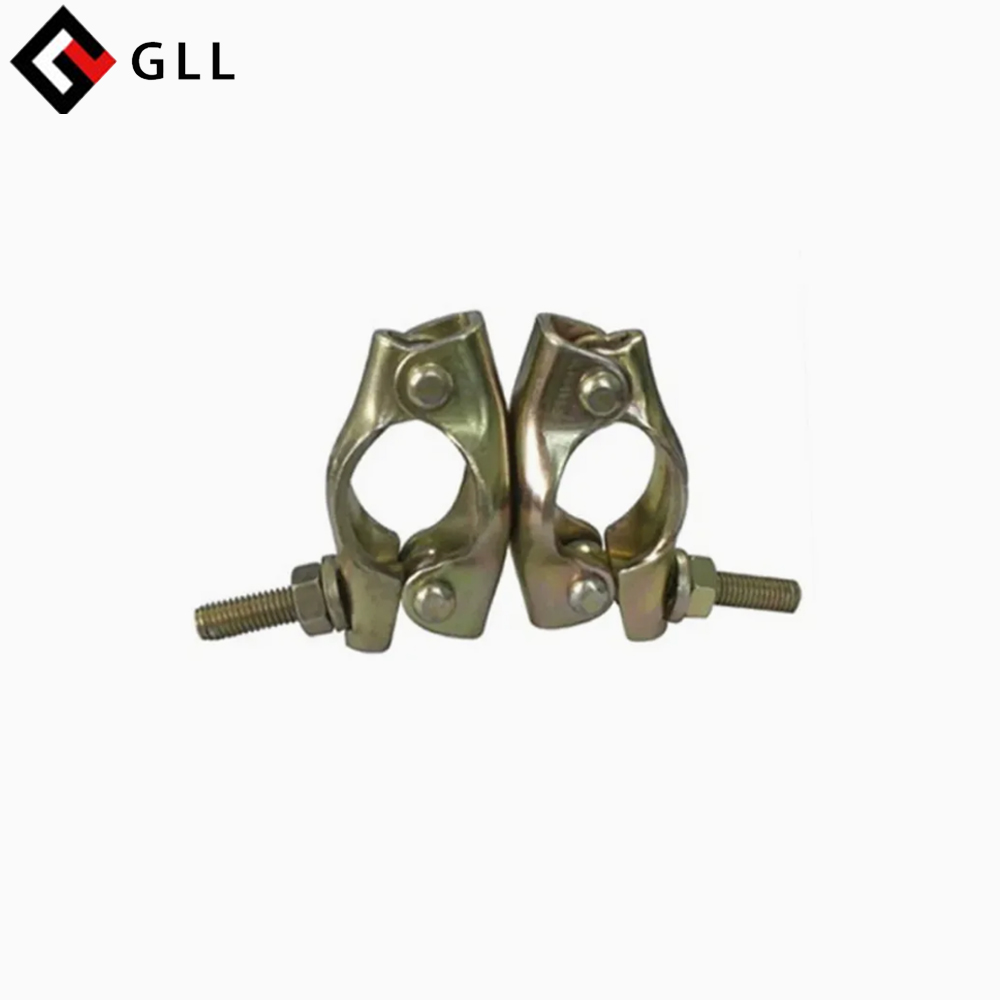

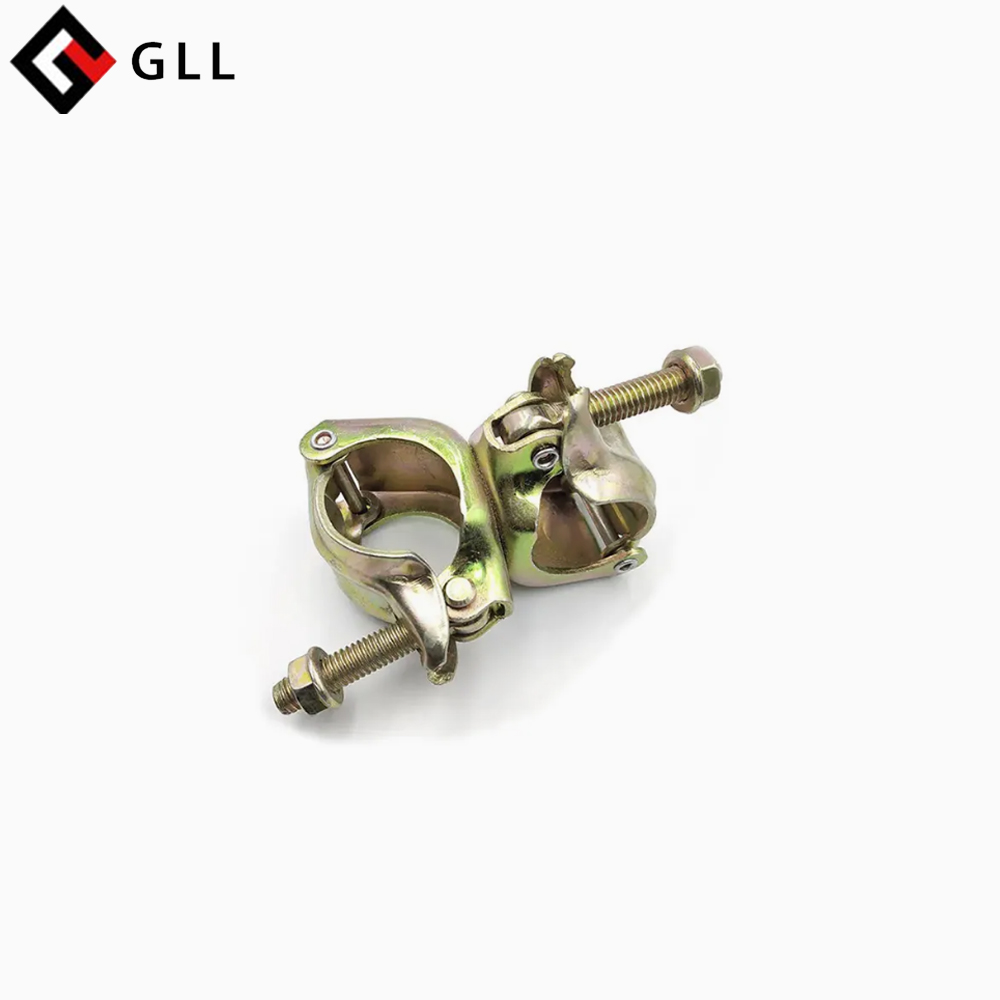

GLL Quick Lock Scaffolding Couplers adopt a unique Quick Lock design. Through the synergy of the built-in spring steel plate group and the rack adjustment system, the clamp can be accurately positioned and locked with one hand. Compared with the traditional bolt connection method, the installation efficiency is improved by more than 60%.

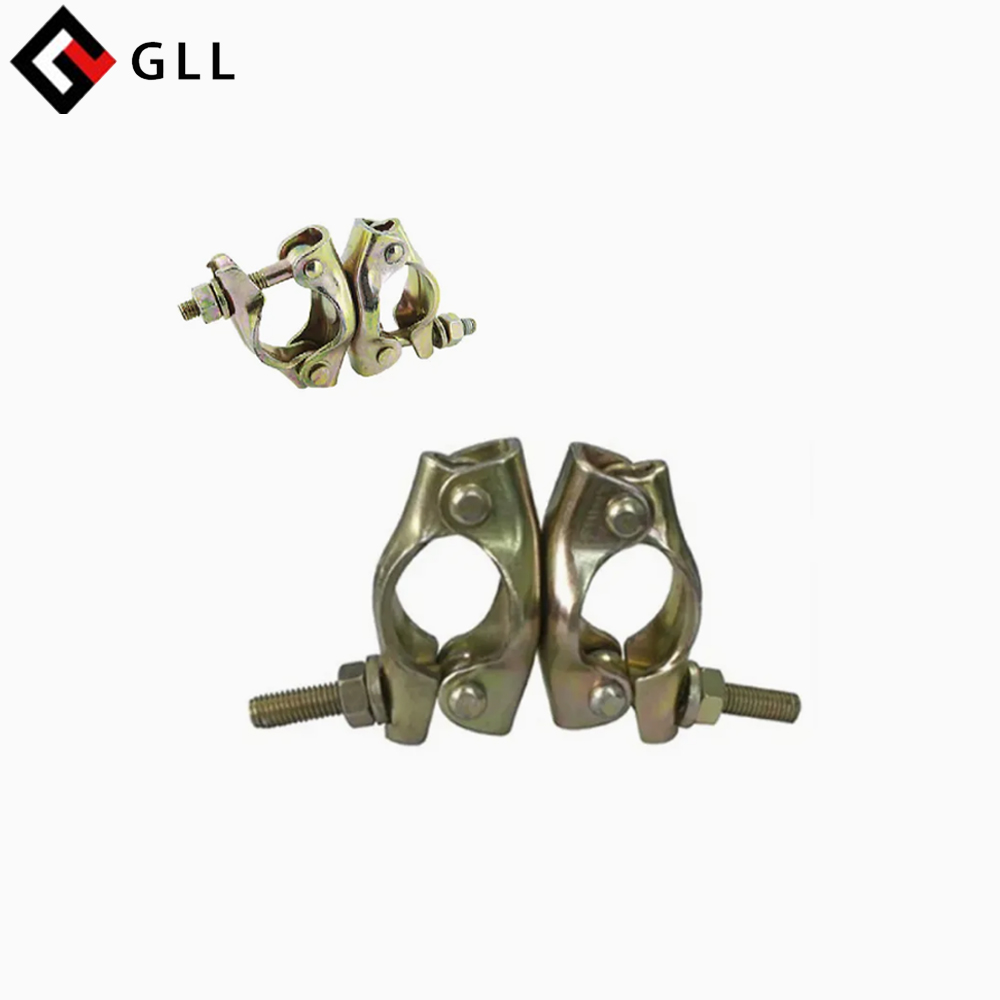

GLL Quick Lock Scaffolding Couplers' main body is made of Q235 low alloy structural steel, which is hot-dip galvanized with a surface zinc layer thickness of 200GSM, and its corrosion resistance far exceeds the industry standard. Through the cold forming process, the clamping surface accuracy of the 48.3mm standard pipe diameter is controlled within ±0.5mm. GLL's measured data shows that its double clamp design can withstand an axial tensile force of more than 8.8kN, far exceeding the BS1139 standard requirements.
The combination of a 90-degree right-angle structure and an adjustable bracket handle enables GLL Quick Lock Scaffolding Couplers to meet the vertical connection requirements of standard scaffolding systems and also achieve 0-30° fine-tuning through concave grooves and adjustment knobs. In the installation of precision equipment such as the hinge device of a gene thermal cycler, its angle adjustability ensures the perfect fit between the equipment and the building structure.
Our GLL Core functions and technical features:
Quick locking design : The patented double jaw structure uses springs to help achieve quick clamping with one hand, reducing the time and risk of working at height;The built-in safety pin prevents accidental loosening and complies with the EN 12810-1 safety standard.
High-precision manufacturing : The cold pressing process ensures that there is no gap between the contact surface between the jaws and the steel pipe, avoiding the stress concentration problem of traditional welded parts;The surface is anodized to improve wear resistance and scratch resistance.
Modular compatibility : It can be seamlessly connected with the full range of GLL Quick Lock accessories (such as rotating clamps and diagonal brace connectors) to support the construction of complex structures.
GLL FAQ
Q1: Is it compatible with non-standard steel pipes?
A1: Designed for 48.3mm standard pipes. If you need custom sizes, please contact the GLL engineering team.
Q2: How is the performance under extreme temperatures?
A2: The operating temperature range is -30°C to 80°C, and the locking force decay is ≤5% at low temperatures.
