GLL 2.25″ Cast Aluminum Elbow 90 Degree Tube

GLL 2.25″ Cast Aluminum Elbow 90 Degree Tube

​Prduct description

Product Name: GLL 2.25″ Cast Aluminum Elbow 90 Degree Tube

Material: Cast Aluminum

Specifications:

  • Diameter: 2.25″ (this may refer to the inner diameter or outer diameter, specific to the product description)
  • Angle: 90 degrees

Technical Parameters:

  • Working Pressure: The maximum working pressure is limited based on the strength and wall thickness of the cast aluminum. Specific values need to be referred to the product manual or obtained by contacting the manufacturer.
  • Operating Temperature Range: Cast aluminum has a specific temperature range within which it can maintain its mechanical properties and corrosion resistance. Exceeding this range may lead to performance degradation or damage. Specific values need to be determined according to the material characteristics of the product.
  • Connection Type: May include threaded connections, flange connections, or other specialized connection methods. Specific information needs to be confirmed according to the product description and drawings.
  • Wall Thickness: The wall thickness of the elbow affects its strength and durability. Specific values need to be referred to the product specification sheet.
  • Surface Treatment: May include anti-corrosion coatings, anodizing, or other surface treatments to improve corrosion resistance. The specific treatment method needs to be determined according to the product description.

Applications:

  • Automotive Manufacturing: Used in cooling systems, fuel systems, or other fluid transmission systems.
  • Aerospace: Used in situations requiring lightweight and high corrosion resistance.
  • Industrial Equipment: Used in fluid transmission systems requiring wear resistance and corrosion resistance.
  • Others: Such as medical equipment, shipbuilding, and other fields may also use this type of elbow.



Mold Material Aluminum,45#, P20, H13, 718, 1.2344, 1.2738 and so on
Material     Aluminum Alloy ADC12 ,A380
Zinc: ZA3#, ZA5#, ZA8#, etc
Magnesium: AZ91D, AM60B, etc.
Or as customer’s request
Drawing format IGES, STEP, AutoCAD, Solidworks, STL, PTC Creo, DWG, PDF, etc.
Size Customized
Application Residential Buildings
Commercial Buildings
Industrial Facilities
Agricultural Structures
Public Infrastructure
Packing packed by bags and pallet
Customer Logo Customized
Film Standard     Powder coating: 60-120 μ , Electrophoresis film: 12-25 μ.
Part Weight     from 3 g — 20kgs
Surface Treatment       Mill-Finished, Powder Coating, Polishing, Brushing, etc.
Deep Processing   CNC / Cutting / Punching / Checking / Tapping / Drilling / Milling
Quality Insurance Professional Quality Expert Team

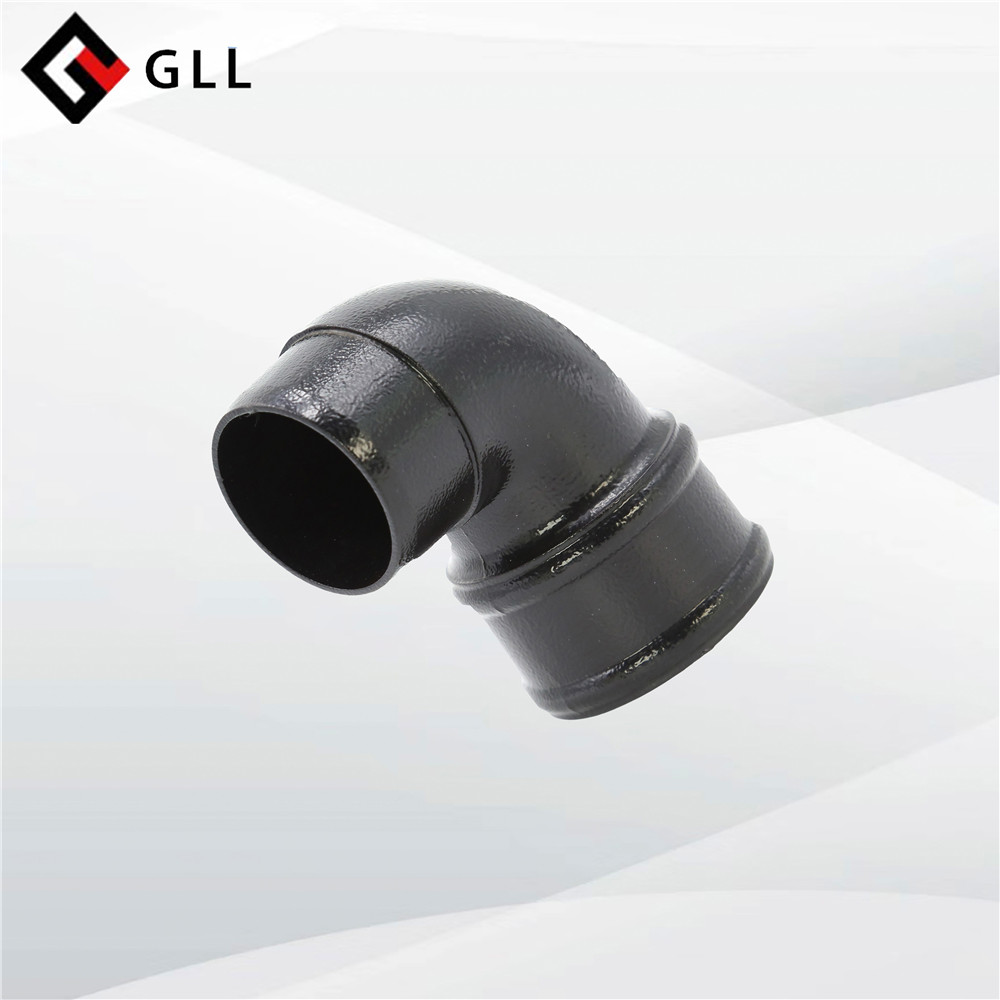

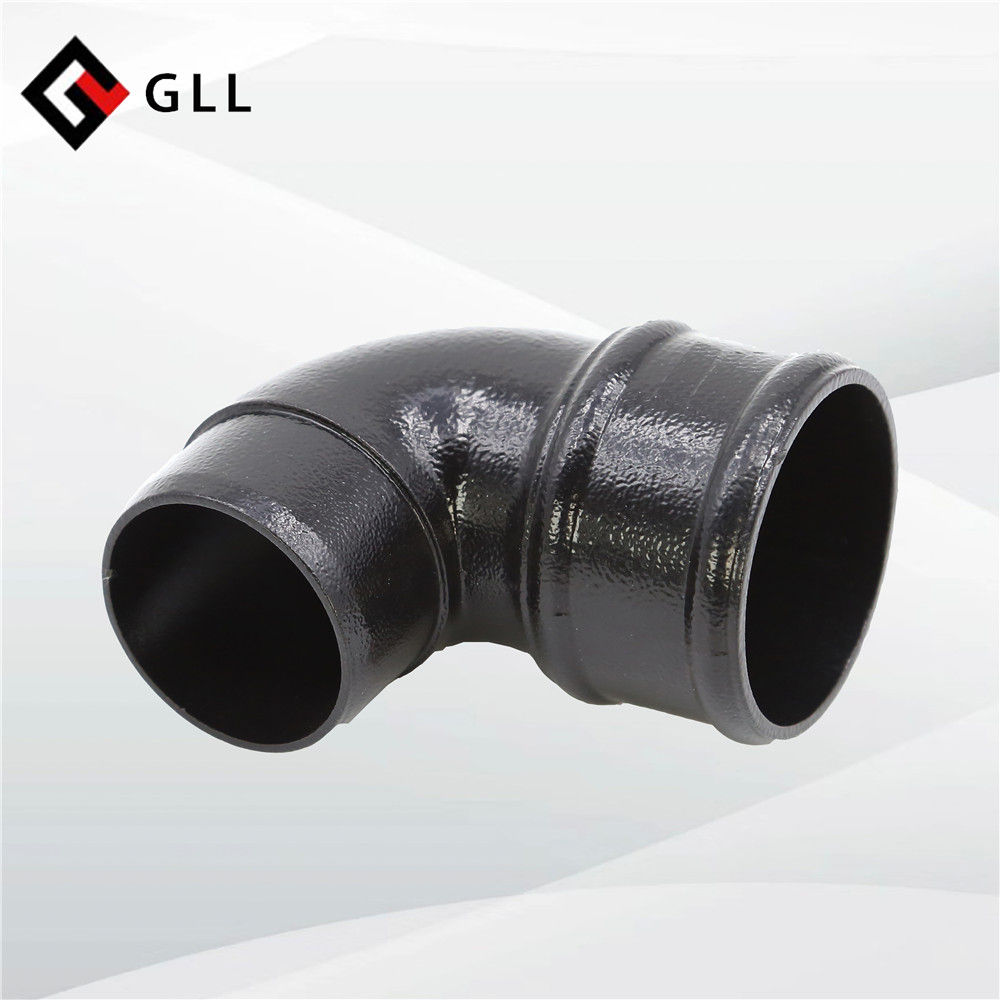

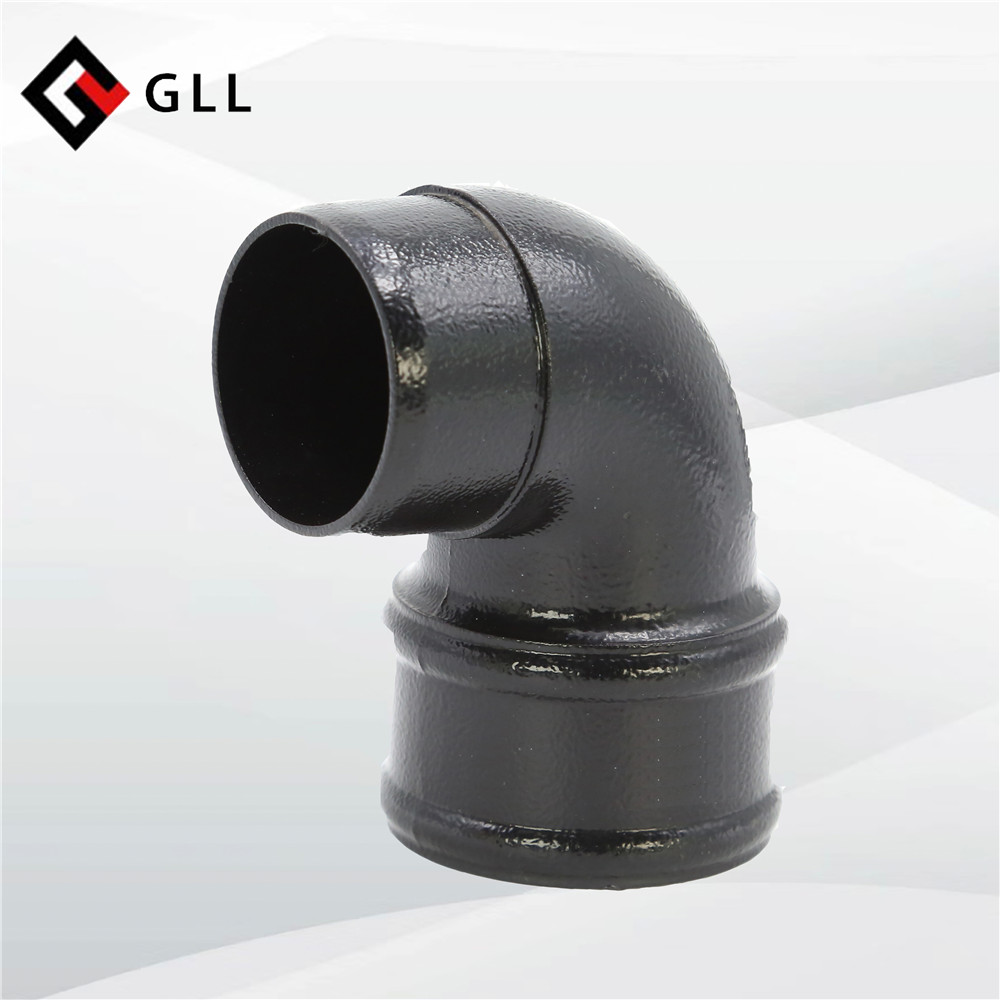

Detailed photos





 Packaging and shipping


1.  Carton Box Packing: Cost-effective and allows for higher loading capacity, though it may pose challenges for loading and unloading.
2.  Wooden or Steel Pallets Packing: Easy loading and unloading.
3.  Customized Packing: Options selected based on clients’ requirements
4.  Shipping: Better to choose sea shipment, if urgent demand can choose Air shipment

Our advantages

GLL has the latest technology, including advanced casting machines, automated production lines, and cutting-edge quality control systems. Our facilities are designed to accommodate a wide range of casting sizes and types, and we are equipped to handle both small and large-scale production runs. Our production process is forging with various materials such as steel, stainless steel, copper, and aluminum; Precision casting with steel, iron, aluminum, copper material; Die casting with aluminum, zinc material, CNC machining; Stamping and welding with steel, stainless steel; Deep drawing and spinning with steel, stainless steel, aluminum, copper; wire bending and welding with Spring, bracket, all of which can meet different demands of our customers.
As an extension of our manufacturing groups, our foundry is dedicated to understanding our customers’ businesses and developing the necessary capabilities to meet their needs for commodities we support.
FAQ
1) Are you a factory?
We are factory located in Jimo city, specialize in aluminum casting for various industries.  Welcome to visit our factory.
2) What about your quality?
All of our products have good quality. Each casting is processed through our QC staff with inspection records for every shipment.

3) How long can you make your quotation?
After receiving detailed information, we will quote within 2 working days.

4) What is your quotation element?
Design drawing, material, weight and quantity.

5) Do you accept the 3D drawings?
We accept both 2D and 3D drawings. Software for specification drawings: PDF, Auto CAD, Solid work, JPG, etc.
